Superwall HF

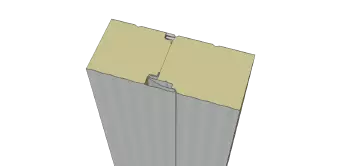

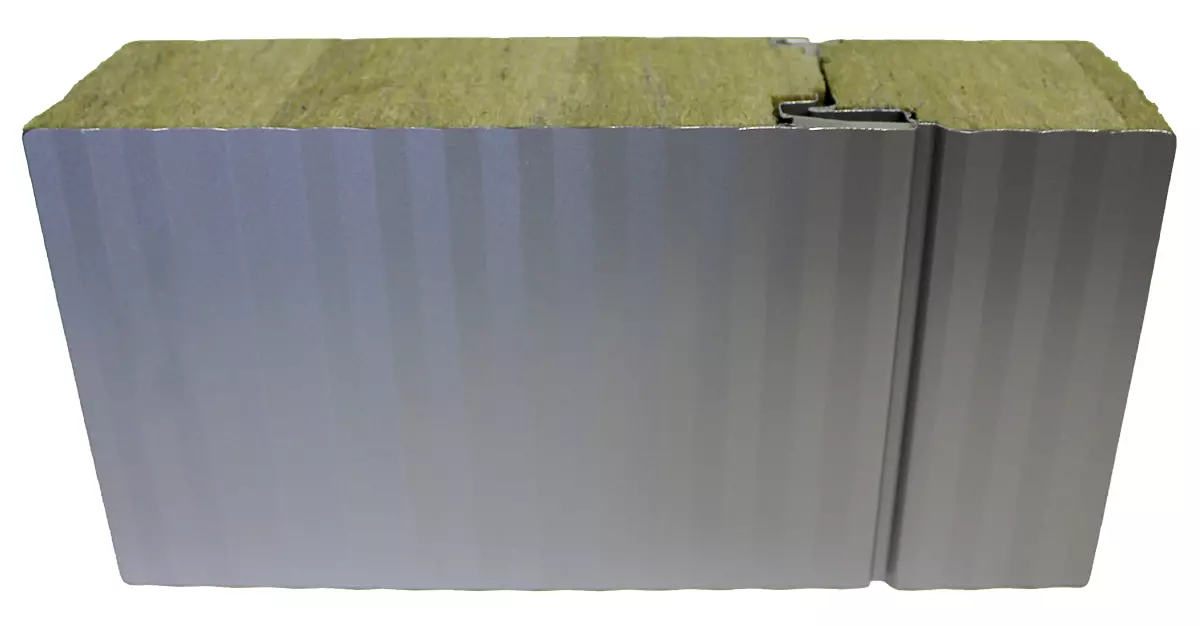

The Superwall® HF sandwich panel with a micro-profiled external steel sheet, a non-combustible mineral wool core and a joint-geometry for hidden fixing is suited best to meet today’s sophisticated requirements for high-quality façades. The panels can be placed vertically or horizontally and - depending on the insulation thickness - may reach a fire resistance up to 90 minutes.

Additionally, Superwall® HF panels show excellent acoustic insulation behaviour.

For buildings exposed to high wind-suction, horizontal single-span installation is recommended, so possibly needed visible fixing-screws may be covered by pilaster profiles.

Due to the large number of combinations with other panels from our portfolio with polyurethane or glass wool insulation core, it is possible to reach fire-safety, acoustic and thermal requirements at once without any visual impact.

Please have a look at our detailed technical manual for further information.

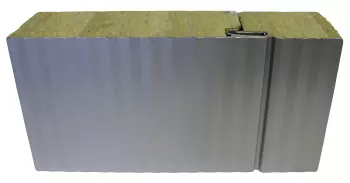

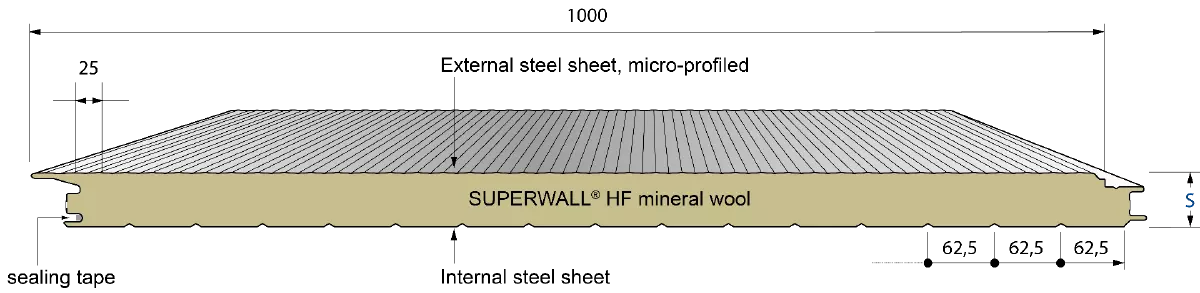

Product specifications

Element name	Element thickness	Outer shell	Inner cover shell	weight	Thermal resistance	Heat transfer coefficient (Ψ - Joint factor)
—	s	tN	tN	kg / m²	R	U without Ψ	U with Ψ
—	mm	mm	mm	kg / m²	m² K / W	W / m² K	W / m² K
SUPERWALL HF	60	0,60	0,60	17,0	1,34	0,713	0,778
	80	0,60	0,60	19,5	1,79	0,539	0,566
	100	0,60	0,60	21,7	2,25	0,433	0,449
	120	0,60	0,60	23,9	2,70	0,362	0,372
	150	0,60	0,60	27,2	3,37	0,290	0,297
	200	0,60	0,60	32,7	4,52	0,218	0,222
	240	0,60	0,60	37,1	5,43	0,182	0,185

Reaction to Fire

Building material classified as A2-s1, d0 non-combustible according DIN EN 13501-1; mineral wool core A1, non-combustible, melting point > 1000°C

Fire Resistance

Supporting width for fire resistance according to Approval of Fire Safety Regulations Z-19.52-2096

Vertical
Panel thickness s	Fire retardant EI30	Highly fire retardant EI60	Fire resistance EI90
mm	mm	mm	mm
100	4000	3000	-
≥ 120	4000	4000	3000

Horizontal
Panel thickness s	Fire retardant EI30	Highly fire retardant EI60	Fire resistance EI90
mm	mm	mm	mm
≥ 120	5000	5000	5000

Thermal Conductivity

λ=0,044 W/m.K under the terms of DIN 4108 and DIN EN 13165
The insulation values are regularly monitored by external bodies and may be applied without any further reduction.

Sound Insulation

R_w ≥ 30 dB

Corrosion protection

Standard version with external steel sheet: 25 μm Polyester
Tested according to DIN EN 10169: External sheet: Class RC3

External sheet: corrosive category C3 corresponding to medium protection durability for urban and industrial environments with moderate exposure to sulphur dioxide
(Conditions of surroundings and corrosivity categories under the terms of DIN EN ISO 12944-2)

Standard lengths

> 2,00 m up to 25,00 m, greater lengths on request.

Profiling

Colour & Coating

METCOLOR COATING SYSTEMS

STANDARD COATING FOR EXTERNAL APPLICATION
25μm POLYESTER

Corrosivity category RC3 in accordance with DIN EN 10169:2010-2
UV resistance category RUV2 in accordance with DIN EN 10169:2010-2
Temperature exposure -20° to 80°C
The well-proven polyester-coating is a modern and costeffective coating system, adapting well to different colour finishes. Polyester-coatings show good corrosion- and weather resistance under normal conditions for industrial application within the Central European region, which makes it the most frequently used coating system.

STANDARD COATING FOR INTERNAL APPLICATION
15 μm DU-POLYESTER

Corrosivity category RC2 in accordance with DIN EN 10169:2010-2
Temperature exposure -20° to 80°C
The polyester-thin-coating (standard colour shade similar to MC 9002) is suitable for conventional industrial buildings for indoor application in rooms with normal room climate and normal relative humidity. The colour shade may not be uniform due to the coating thickness.

25 μm OR 35 μm PVDF (POLYVINYLIDENFLUORIDE) - On request

Corrosivity category RC3 (25 μm) or RC4 (35 μm) in accordance with DIN EN 10169:2010-2
UV resistance category RUV4 in accordance with DIN EN 10169:2010-2
Temperature exposure -20° to 110°C
This coating shows optimal resistance against UV-radiation and weather and has good ductility. lt is suited particularly well for high requirements on the colour finish and has been found to be excellent in regions with difficult climatic conditions (e.g., 5-15 km from the sea).

Our recommendation for outdoors (indoors)

50 μm POLYAMIDE MODIFIED POLYURETHANE (PUR-PA) - On request

Corrosivity category RC5 in accordance with DIN EN
10169:2010-2
UV resistance category RUV4 in accordance with DIN EN
10169:2010-2
Temperature exposure -20° to 80°C
By using polyamide this coating system reaches a high surface hardness. lts visibly grained structure is particularly resistant to abrasion and ensures efficient protection against mechanical damage. lt is also widely resistant to strain by animals such as poultry, making it ideally apt for agricultural application. The flexibility and excellent resistance to UV radiation make this coating also suitable for outdoor installation.

Please also have a look at our Guideline for the Selection of Coating Systems.

Materials

Thickness of steel sheets

External steel sheet 0,60 mm (optional: 0,75 mm)

Internal steel sheet 0,60 mm* (optional 0,45 mm / 0,50 mm / 0,75mm)

* When installing hidden fixing, a steel sheet thickness of min. 0,60 mm is absolutely mandatory!

Materials

Standard version

- galvanised steel, quality S320 GD + Z275

Optional version

- galvanised steel, quality S350 GD + Z275

- Al Zn 180

- stainless steel VA 1.4301 (internal sheet)

Approvals & Certificates

According applicable EU Construction Products Regulation, production according to DIN EN 14509, CE label under the terms of the EG conformity certificate 0769-CPR-VAS-00420-1
DIBt Approval of use Z-10.49-517 as self-supporting sandwich panel under the terms of DIN EN14509
DIBt Approval for use Z-19.52-2096 as sandwich panel for the construction of fire resistant components

Metecno provides certainty and predictability with our fire safety approval Z-19.52-2096 concerning the construction of walls and roofs with fire resistance made of sandwich panels with a mineral wool core.

- Fire Safety Approval for Metecno Wall Panels with Mineral Rock Wool Core: Z-19.52-2096
- Fire Safety Approval for Metecno Roof Panels with Mineral Rock Wool Core: Z-19.52-2731

Packaging

External sheets provided with removable protective foil, panel-packages wrapped with banded plastic foil to protect from soiling. Also, package weights of max. 2,5 t or 1,5 t are available on request.

Container shipment

On request, we provide container packaging apt for oversea shipping. The panels will be stored in containers of 20 feet (6,096 m) or 40 feet (12,192 m), including an unloading system for easy unloading of the packages at their destination.

Way of Packaging

A-sided

Paketbildung-wand-verdeckt-a-seitig

Number of panels per packaging unit

Core thickness Number *

60 18

80 14

100 11

120 9

150 7

200 5

*) standard amount for standard package weight of 3,5t
